Chevy Colorado Bolt Pattern: The Essential Guide
This first spec is a must-know before buying wheels, tires, spacers, or adapters for your truck. A wrong fit can stop a wheel from mounting or cause vibration and unsafe clamping.
The following short guide shows how to identify the right pattern by model year, how to measure it correctly, and how to match the rest of the fitment specs. Readers will get quick reference tables, measuring tips for 6-lug wheels, and a practical ordering checklist.
Generation changes explain conflicting info online: older 2004–2011 models use 6×139.7 mm (6×5.5″), mid-years 2011–2023 use 6×120 mm (6×4.72″), and 2023 onward returns to 6×139.7 mm (6×5.5″). All share a 66.9 mm center bore and commonly use M12×1.5 lug nuts.
For owners of a chevrolet colorado, this section sets expectations and keeps a safety-first tone. Correct fitment and correct torque reduce the risk of loose lug hardware and wheel damage, which improves long-term safety.
What a Bolt Pattern Is and Why It Matters for Wheels and Safety?
The lug layout starts every safe wheel change. It is the number of lug holes and the diameter of the circle they form. That is why “6-lug” and “6×139.7” are related but not identical.
How the lug pattern affects fitment, handling, and stability?
A wheel that matches the lug layout will sit flush and center on the hub. If the pattern is off, the rim can rock or fail to center, creating vibration.
Mis-seating puts uneven load on studs. That harms handling and can reduce stability during cornering or braking.
Common upgrade reasons and the role of spacers
Owners pick aftermarket wheels for style, larger tire choices, or a wider stance. Changing offset or adding spacers alters scrub radius and track width.
Wheel spacers can widen stance and improve stability, but they do not fix a wrong bolt pattern unless you use a proper adapter. Improper torque or wrong hardware risks loose lug fasteners, regardless of wheel looks.
Quick comparison
| Item | What it means | Impact if wrong |
|---|---|---|
| Number of lugs | How many studs hold the wheel | Wheel won’t mount or will shift under load |
| Pitch circle diameter | Diameter of the lug circle (mm/in) | Wheel may not center; causes vibration |
| Spacers/adapters | Widen stance or convert bolt interface | Can help stance but adds complexity and torque needs |
Chevy Colorado bolt pattern by generation and model year
Knowing which generation your truck belongs to is the fastest way to confirm wheel fitment. Match the year to the listed lug circle size before you shop wheels or adapters.
First generation (2004–2011)
Spec: 6×139.7 mm — listed in many catalogs as 6×5.5″.
This 6-lug layout was common on early models. If you see 6×5.5″ on a listing, it will fit first-gen trucks that use the same lug circle.
Second generation (2011–2023)
Spec: 6×120 mm — also shown as 6×4.72″.
This generation is the outlier. Buyers often trip up by assuming any 6-lug wheel fits — the circle diameter changed, so verify the metric size.
Third generation (2023–present)
Spec: 6×139.7 mm (6×5.5″).
The newer models return to the larger lug circle, which widens compatibility with wheels used on other trucks.
Quick reference: 6×139.7 vs 6×120
| Feature | 6×139.7 (6×5.5″) | 6×120 (6×4.72″) |
|---|---|---|
| Model years | 2004–2011, 2023–present | 2011–2023 |
| Common listing | 6×139.7 mm / 6×5.5″ | 6×120 mm / 6×4.72″ |
| Note | More cross-fit options | Requires careful matching |
- Remember: The colorado lug count stays 6 on all generations, but the circle size changes.
- Tip: Check mm vs inch formatting on product pages to avoid ordering the wrong size.
How to Measure the Chevy Colorado Wheel Bolt Pattern Correctly?
Take a simple, repeatable measurement so listings in inches or millimeters line up with your truck. This removes guesswork and cuts returns when ordering wheels online.
Measuring a 6-lug pattern without guesswork
Measure from the center of one stud straight across to the center of the stud opposite it. Do not measure to an adjacent stud or from edge-to-edge.
If the wheel is off the vehicle, lay it flat and use a ruler or caliper for better accuracy. If the wheel stays on, use a tape and align carefully to the stud centers.
Metric vs inch conversions
Common sizes: 6×139.7 mm (6×5.5″) and 6×120 mm (6×4.72″).
Match listings shown in inches to the metric spec before you buy. This avoids ordering mismatched wheels or adapters.
What to check before ordering wheels online?
- Confirm lug count and the measured bolt pattern on the listing.
- Verify the fitment year range the seller lists.
- Remember wheel size (diameter and width) is separate from the lug circle—both must match.
- Do not rely on a “fits most” claim; mid-generation changes can invalidate that claim.
| Step | Action | Why it matters |
|---|---|---|
| Measure across | Center-to-center opposite stud | Gives accurate lug circle size |
| Convert units | Match inches to mm | Prevents ordering the wrong size |
| Verify listing | Check lug count and year range | Ensures proper fitment and safe installation |
Other Fitment Specs You Must Match: Center Bore, Lug Nuts, and Torque
Match the lug circle, but don’t stop there—wheel fitment depends on more small details that affect safety. After confirming the bolt layout, verify the center bore, lug hardware, and torque. These three determine whether a chevrolet colorado wheel centers correctly and clamps safely.

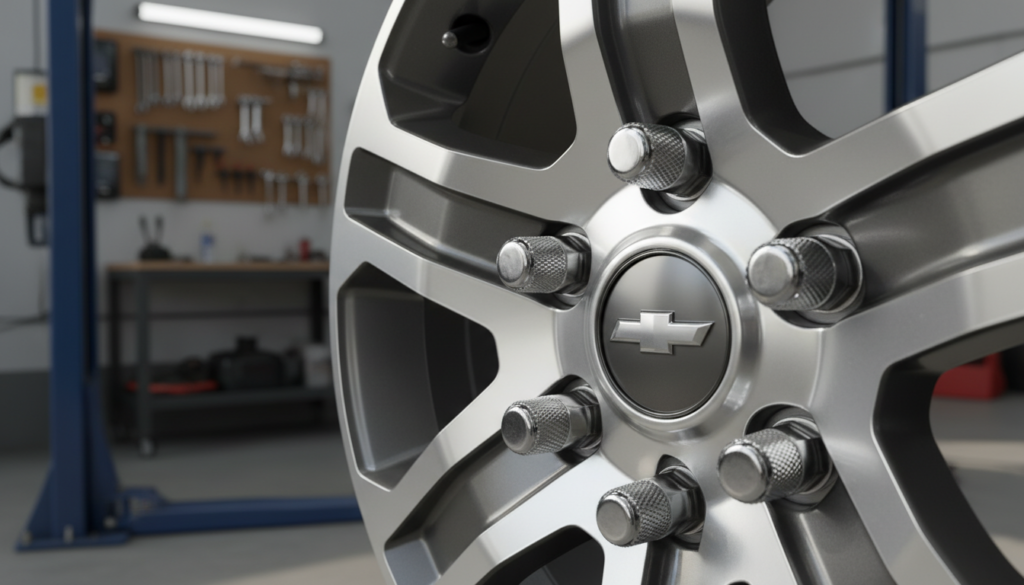

Center bore and hub-centric fit
The center bore for these trucks is 66.9 mm. A hub-centric fit lets the hub carry the load, not just the lug studs. That reduces vibration and helps the wheel sit true.
Lug nuts and thread details
Most factory lug nuts use M12×1.5 threads with 60-degree conical seats. Using the wrong seat style or thread can damage wheel seats or fail to clamp the wheel.
Some wheels or model years use different sizes—make sure to check existing nuts or the parts guide before buying new nuts.
Torque specs and practical install tips
Torque is rotational force, shown in ft‑lb or Nm. Sources commonly cite 80–100 ft‑lb for some wheels and 140 Nm (103.5 ft‑lb) in others. Wheel material and manufacturer guidance determine the correct value—use the owner’s manual or wheel maker as final authority.
- Use a torque wrench and a star pattern when tightening.
- Common socket size: 22 mm (7/8″).
- Re-check torque after a short drive to protect studs, nuts, and wheel seats.
| Spec | Value | Why it matters |
|---|---|---|
| Center bore | 66.9 mm | Hub supports wheel; reduces vibration |
| Lug thread/seat | M12×1.5, 60° conical | Correct clamp and seat engagement |
| Torque guidance | 80–100 ft‑lb or 140 Nm | Prevents loosening and stud damage |
Wheel Offset, Clearance, and Wheel Size Considerations for Real-World Driving
How a wheel mounts relative to its centerline matters — offset determines where the tire sits in the wheelwell and how it affects brakes and suspension.
Typical offsets for the second generation and what they mean?
For the second generation, offsets commonly run from -12 mm to +40 mm. Some newer trims use +18 mm to +45 mm.
Negative offsets push the rim outward; positive offsets tuck the rim inboard. Visually, negative offsets make a wider stance.
Clearance points and real-world effects
Key clearance checks: brake caliper space, upper control arm and suspension travel, and fender/tire contact at full lock and compression.
Pick an offset without checking these and you may hear rubbing during tight turns or heavy compression. That affects handling and stability in varied driving conditions.
- Wheel sizes and tire width change clearance even if the bolt fit is correct.
- Think in systems: wheel width + offset + tire size + suspension height = actual fit.
- If you change offsets aggressively, verify with a test fit or trusted fitment data for your exact trim.
| Item | Typical range | Impact |
|---|---|---|
| Offsets | -12 mm to +40 mm | Track width, stance |
| High offset | +18 mm to +45 mm | Tucked fit for daily driving |
| Negative offset | -12 mm | Wider stance, more rub risk |
Choosing Aftermarket Wheels for Your Colorado Without Compatibility Issues
Start shopping for new wheels by locking down the hard measurements, then pick the style. Prioritize fitment specs first so the purchase installs cleanly and runs true.
Hub-centric fit and when to use centering rings?
Hub-centric fitment keeps the hub carrying the load, reducing vibration and improving alignment. If an aftermarket wheel has an oversized center bore, add a centering ring to restore a hub-centric interface.
Center rings are an inexpensive fix. They stop wobble and make a wheel feel like it belongs on the hub.
Compatibility checklist for new wheels
- Bolt pattern — confirm the exact lug circle for your model year.
- Center bore — match or plan for centering rings if larger.
- Lug nut thread — verify M12×1.5 or the correct size for your studs.
- Offset — ensure the offset gives brake clearance and proper track width.
- Clearance — confirm the wheel clears calipers and suspension at full lock.
Style and design for daily driving versus off-road
For regular driving, choose lighter, street-focused wheels with finishes that resist road salts. For off-road use, pick tougher designs and protective coatings that handle rocks and mud.
Remember: the best wheel is the one that fits correctly, supports the intended load, and matches the owner’s goals. Always consider wheel width, tire sidewall, and offset together — they determine ride quality and steering feel.
| Need | Recommendation | Why it matters |
|---|---|---|
| Vibration-free fit | Hub-centric or centering rings | Hub supports load; reduces wobble |
| Correct fitment | Bolt pattern, center bore, lug nut thread, offset | Prevents returns and unsafe installs |
| Use case | Light street wheels vs heavy-duty off-road designs | Matches durability and performance needs |
Wheel Spacers and Adapters: When They Help and When to Avoid Them?
Not all fitment fixes are the same. Spacers keep the original bolt pattern and move the wheel outward. Adapters change the interface so different wheels will mount.
Why spacers improve stability and correct offset?
Adding a spacer widens track width, which often improves stability and handling on mid-size trucks. Spacers also correct offset when an aftermarket wheel sits too far inward and rubs a caliper or suspension part.
Bolt pattern conversion and options
Adapters can convert a 6×120 bolt pattern truck to accept 6×139.7 bolt pattern wheels, opening up more wheel choices. This is useful but adds thickness and extra hardware to inspect.
Safety rules and when to avoid?
Use hub-centric contact or quality centering rings. Match lug nuts, stud engagement, and torque specs. Re-torque after 50–100 miles. Do not stack spacers, avoid unknown brands, and never use spacers to hide a fundamentally wrong fitment.
| Item | Spacer | Adapter |
|---|---|---|
| Function | Adjust offset/track | Change bolt interface |
| Risk | Requires proper lug length | Extra points needing inspection |
| When to use | Fix clearance or widen stance | Run 6×139.7 bolt wheels on 6×120 trucks |
Make sure to verify thickness, correct nuts, and reputable manufacture. The colorado lug clamping system is only as safe as its installation—skip shortcuts like impact-only tightening.
Conclusion
Confirm the truck’s model year first — it’s the single quickest way to avoid buying the wrong lug configuration.
Recap: first and third generations use 6×139.7 mm; the middle generation uses 6×120 mm. The chevy colorado bolt pattern shifts by generation, so year verification comes first.
Fitment goes beyond the lug circle. Check the 66.9 mm center bore, the M12×1.5 lug nuts with 60° conical seats, and offset/clearance before you buy wheels.
Torque is safety-critical. Use a torque wrench and follow the wheel maker or vehicle spec (one common reference is 140 Nm / 103.5 ft‑lb). Re-torque after a short drive.
Make sure, follow this quick checklist: confirm generation, confirm bolt pattern, confirm center bore, confirm lug nuts, and confirm offset/clearance. With those matched, upgrades and spacers can be done confidently and safely — strong, simple steps make safer installs.
FAQ
What is the correct lug pattern for first-, second-, and third-generation Chevy Colorado models?
The early models (2004–2011) use a 6×139.7 mm (6×5.5″) 6-lug layout. Most second-generation trucks (2011–2023) also use 6×139.7, but some aftermarket or international variants may use 6×120 mm. The third generation (2023–present) primarily retains 6×139.7 on standard models. Always verify the specific model year and trim before buying wheels.
How do I measure a 6-lug wheel pattern without making a mistake?
For 6-lug wheels, measure center-to-center across two opposite holes. That distance is the bolt circle diameter (for example, 139.7 mm). Use a straight ruler or caliper and measure in millimeters for accuracy. If you only have inches, 139.7 mm equals 5.5″. Double-check against factory specs.
What is the center bore and why does it matter for fitment?
The factory center bore for many Chevrolet pickups is 66.9 mm. A hub-centric wheel matches that bore so the hub, not the lug nuts, centers the wheel. If an aftermarket wheel’s bore is larger, use properly sized centering rings to avoid vibration and uneven load on studs.
What lug nut thread and seat type should I use?
Common lug nut thread for these trucks is M12×1.5 with a 60-degree conical seat. Select nuts that match the wheel’s seat style (conical vs flat) and the correct thread pitch to prevent cross-threading and ensure secure clamping.
How does wheel offset affect clearance and handling on these trucks?
Offset shifts the wheel in or out. Positive offset pulls the wheel inward; negative pushes it outward. Small changes alter scrub radius, steering feel, and brake caliper/suspension clearance. Stick to the manufacturer’s recommended offset range or use measured spacers/adapters to avoid rubbing and poor handling.
Can I use wheel spacers or adapters to change bolt circle from 6×120 to 6×139.7?
Yes — bolt circle adapters exist to convert 6×120 to 6×139.7, but they add complexity and stress to studs. Use high-quality, hub-centric adapters, follow torque specs, and re-torque after 50–100 miles. Avoid thin, poorly rated spacers and never exceed manufacturer safety limits.
What torque values and socket sizes should I use when installing wheels?
Torque is typically specified in ft‑lb or Nm by the vehicle maker; many mid-size trucks use roughly 80–100 ft‑lb (108–135 Nm) for lug nuts, but always check the exact spec for your year and model. Common socket sizes are 19 mm or 21 mm depending on the nut. Use a calibrated torque wrench and re-check torque after initial driving.
Which checklist should I follow when ordering aftermarket wheels?
Confirm bolt circle (6×139.7 or 6×120), center bore (or plan for centering rings), lug thread and seat (M12×1.5, 60° cone), correct offset, and wheel diameter/width for tire fitment. Also verify brake clearance, load rating, and that the wheels are hub-centric or use rings for a hub-centric fit.
Will changing wheel size or offset affect driving safety in rain, snow, or off-road?
Yes. Larger diameter or wider wheels can change traction, suspension geometry, and braking behavior. Incorrect offset may cause rubbing in turns or under compression. For adverse conditions, prioritize proper tire choice, correct offset, and clearance to preserve handling and safety.
How can I tell if a wheel is hub-centric or lug-centric, and which is better?
Hub-centric wheels have a matching center bore that fits snugly on the hub; lug-centric wheels rely on the lug nuts to center the wheel. Hub-centric is preferred for heavier vehicles because it reduces vibration and stress on studs. If an aftermarket wheel has a larger bore, use a precision centering ring to achieve a hub-centric fit.
